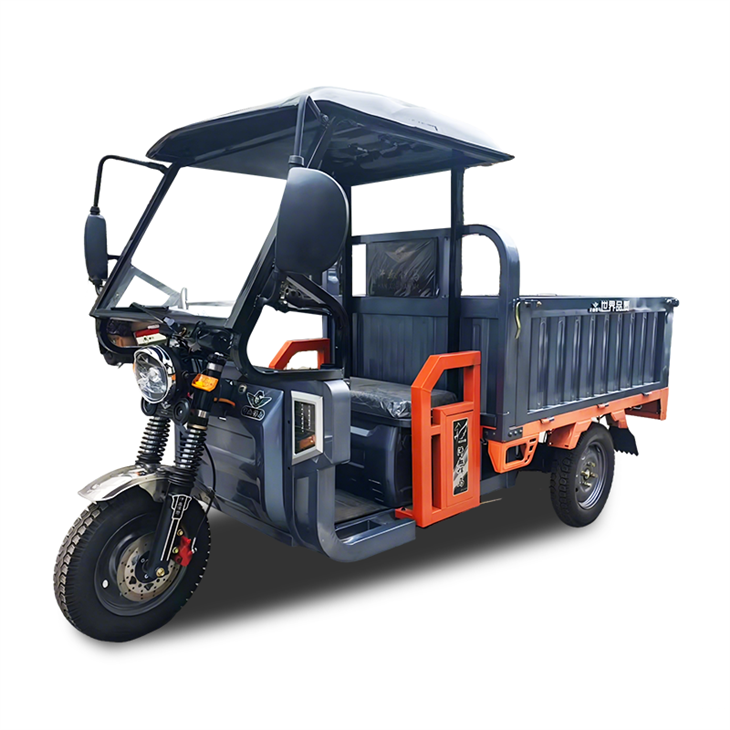

Electric Cargo Three Wheeler

Electric passenger tricycles are suitable for safe, comfortable, and environmentally friendly urban and rural transportation. They feature a robust steel frame structure, stable performance, low noise, and zero emissions. They are available in 4-8 seat configurations, with open or enclosed cabins as options.Equipped with a high-torque brushless motor, the vehicle delivers strong power with low energy consumption, performing well in starting, climbing and full-load driving. It is economical to operate, with much lower running cost than fuel-powered vehicles, and easy to maintain in daily use. The tricycle is compact, flexible and easy to handle, suitable for narrow roads, alleys, markets, factories and farmland scenarios. With safe and responsive braking, comfortable damping and durable structure, it is an environmentally friendly, efficient and reliable transport solution for small businesses, farmers and delivery services.

Send Inquiry

Product Introduction

Electric cargo three wheeler is a high-performance electric cargo tricycle equipped with a permanent magnet synchronous motor, a heavy-duty chassis configuration (leaf springs + reinforced rear axle), and a 1.6×1.1m cargo box. It features strong power, stable load-bearing capacity, durability, and reliability, making it suitable for urban and rural freight, construction site/agricultural short-distance transportation, and other scenarios.

Power and Motor System

🔋Motor Type: 1800W permanent magnet synchronous motor, rated voltage 60V-72V, maximum power 2536W, maximum torque 117.3N・m, powerful and efficient.

Control System: Supports 18G/24G/30G controller adaptation to match different power requirements.

Starting Method: Electric start, easy operation.

🚛 Body and Load-Bearing Configuration

Frame: 50×70mm high-strength keel frame, stable structure.

Cargo Box Dimensions: 1.6×1.1m, meeting basic cargo carrying requirements.

Rear Axle: Integrated shiftable 160° tapered rear axle (optional 160/180/220 or large six-tooth), reliable transmission, less prone to slippage under heavy loads.

Suspension and Load-Bearing Capacity: Built-in 7-leaf heavy-duty steel leaf springs (50×640mm) + 43 external springs for shock absorption, suitable for complex road conditions and with strong load-bearing capacity.

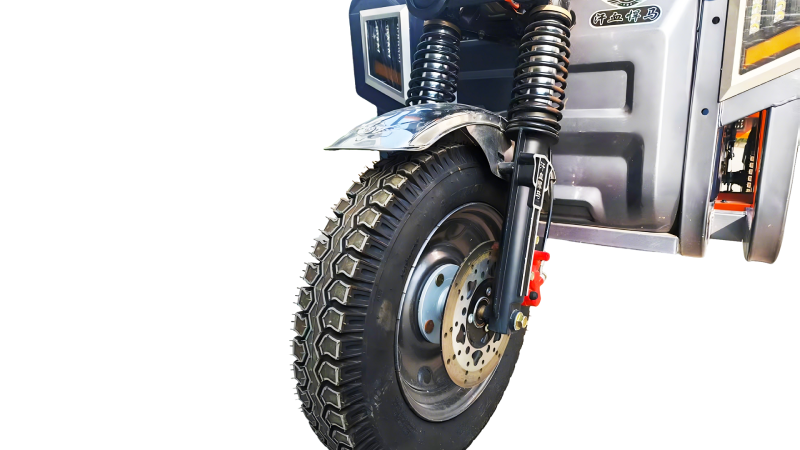

Tires: Front tires are 3.75-12 nylon tires, rear tires are 4.00-12 steel wire tires, wear-resistant and puncture-proof, suitable for heavy-duty scenarios.

🔋 Battery Configuration

Standard configuration includes a 45Ah battery, providing sufficient range for short-to-medium distance transportation needs; upgrades are available upon request.

Product detail images

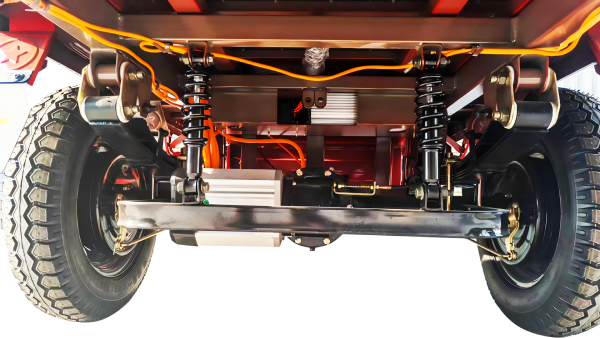

Electric Cargo Three Wheeler Rear Axle

Fully floating, power-assisted rear axle is a high-performance rear axle assembly designed specifically for heavy-duty electric/fuel-powered tricycles. Through the combination of a "fully floating structure + power-assisted transmission mechanism," it achieves core advantages such as strong load-bearing capacity, high torque, impact resistance, and low loss. The half-shaft is only responsible for transmitting power torque; all the vehicle's load and impact loads are borne by the axle housing and wheel hub flanges, and the half-shaft does not bear bending stress.

Why us

We offer custom power ratings, from the common 1000W to 1800W and even higher.

Any color is available.

We have experience working with clients in multiple countries and have a deep understanding of their needs.

product-1170-572

We are the first factory to manufacture plug-in hybrid tricycles, which, like traditional cars, have a three-electric system. Hybrid tricycles mean longer driving range.

product-1170-820
