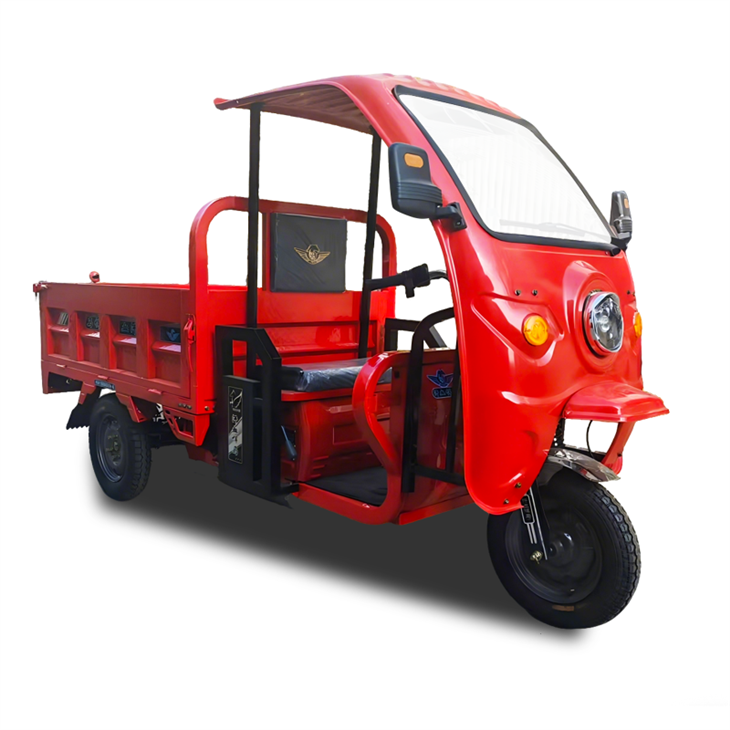

Enclosed Cab Electric Cargo Tricycle
HD-07 is an enclosed cab electric cargo tricycle equipped with a high-power permanent magnet synchronous motor, available in multiple power options.Featuring an integrated gear-shifting rear axle and (18G/24G/30G) controller, the tricycle delivers strong acceleration and effortless hill climbing.The tricycle body is equipped with a 50×50mm thick keel frame. while the cargo box dimensions range from 1.5×1m to 1.6×1.1m, meeting most cargo requirements. With a 45Ah battery, it offers stable range, simple maintenance, and low failure rate.
Product Parameter (specification)
Model Name: HD-07
|
Item Name |
Items |
Specification |
|
Engine |
Motor Type |
120-60V 50HA Permanent Magnet Synchronous Motor (1000W/1200W/1500W/1800W) |
|
Magnet Specification |
5.0 x 14 x 3 mm |
|
|
STARTING MODE |
Electric Start |
|
|
Rated Voltage |
60V–72V |
|
|
MAX. POWER |
2536W |
|
|
MAX. TORQUE (NM/RPM) |
117.3 Nm |
|
|
Control System |
18G / 24G /30G Controller |
|
|
Body |
||
|
FRAME KEEL |
50 x 50mm |
|
|
CARGO |
1.5 x 1M - 1.6 x 1.1M |
|
|
REAR AXLE |
INTEGRATED SHIFT 160 TAPER REAR AXLE; DONGBA160/DONGBA180/DONGBA 220/LARGE SIX-TOOTH GEAR |
|
|
STEEL BOARD |
WITH SEVEN BUILT-INWEIGHTED STEEL PLATES (50X530MM FLAT PLATES) |
|
|
SHOCK ABSORBER |
43-TYPE EXTERNAL SPRING SHOCK ABSORBER |
|
|
TIRE |
DOUBLE COIN NYLON TIRES,FRONT3.75-12/ REAR 4.00-12 STEEL WIRE REINFORCED TIRE |
|
|
BATTERY |
45Ah |
|
|
OTHERS |
- |
|
|
Loading Quantity |
loading/40HQ |
|
|
Customization |
Yes |
|
Procurement Instructions
- This tricycle is an enclosed cab electric cargo tricycle. Please confirm whether the vehicle you need to purchase is the electric model or the fuel-powered model. There are some differences in the performance-appropriate environments between the two types of vehicles.
- If you need to customize a three-wheeler, please let us know the main purpose of the vehicle and the regular driving conditions. We will then make recommendations based on these details.
- Once the customer has finalized the style, size and color, production can be arranged. After placing the order, the configuration cannot be changed arbitrarily. We support the mixed storage of different models in the same cabinet. The quantity and style should be checked in advance. Before shipping, we will take photos of the vehicle condition to confirm with you. Once it is confirmed without error, we will arrange for loading and shipping. After delivery, please check the appearance and operational functions promptly. If there are any problems, please contact us immediately for handling.
Production details

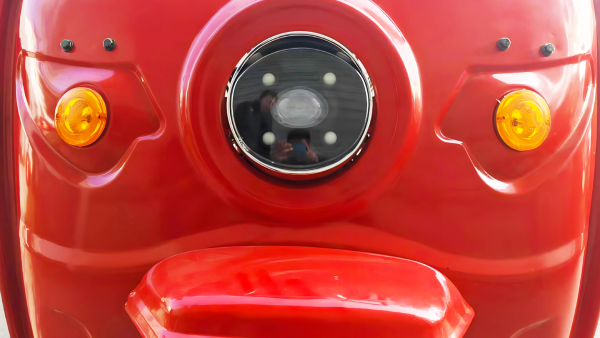

You can choose either LED lights or halogen lights.

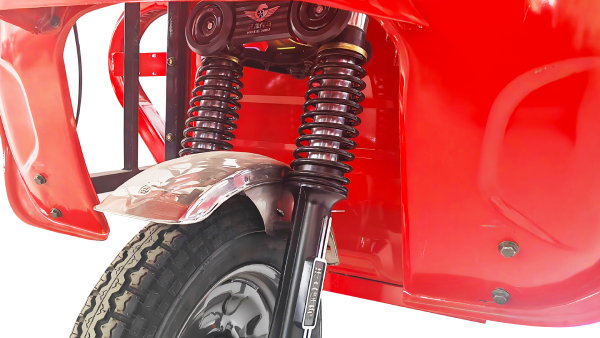

The shock absorber adopts the 43 type external spring shock absorption system, combined with a seven-piece thick steel plate spring assembly. During full-load driving, the vehicle body remains stable, suitable for various complex road conditions, and has strong durability.

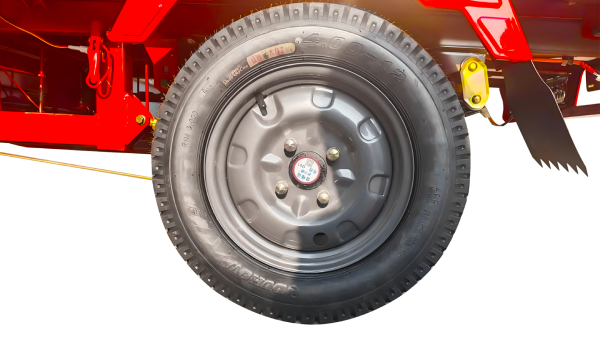

Enclosed cab electric cargo tricycle is equipped with wear-resistant and thickened nylon tires. The specifications for the front wheels are 3.75-12, and for the rear wheels they are 4.00-12. The tire body is thick and has strong grip, resisting compression and wear. It is suitable for dirt roads and uneven surfaces, and will not deform under heavy loads.

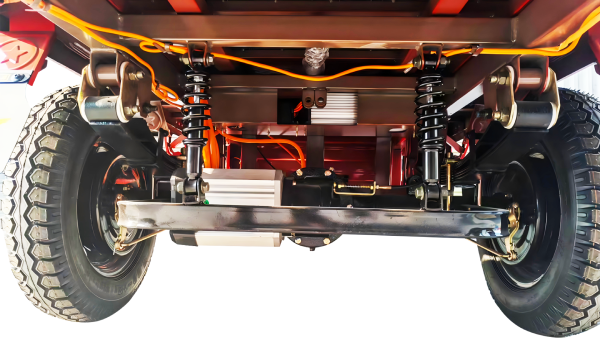

The tricycle is equipped with an integrated automatic gear shifting heavy-duty rear axle, ensuring stable and powerful power transmission. It features a switchable high and low speed gear system, smooth climbing performance, high load-bearing strength and is not prone to damage, with a long service life.
About us
"HANXUE HUMMER" Company is located in the Chongqing Industrial Park of China, covering an area of 25,000 square meters. Our company's advantages lie in over ten years of experience in the research and production of tricycles, possessing independent enterprise patent technology, strict quality control, sufficient inventory, flexible customization, and one-stop export support services.
Factory
Patent Certificate
FAQ
Q: How much does a tricycle cost?
A: The vehicle model configuration, order quantity, and customization requirements all affect the unit price. Please inform us of the purchase quantity and the selected version, and we will immediately calculate the precise quotation for you.
Q: Can we print the exclusive logo and customize the accessories?
A: Of course, our factory offers customized printing of exclusive LOGOs. We can also modify the car lights, shock absorbers, cargo boxes and other components as per your requirements. Once the plan is confirmed, we can start the production process.
Q: After we make the purchase, will the supply of original factory accessories be stable in the future?
A: Our factory ensures a stable and sufficient supply of accessories. We can supply as per demand over a long period and accept orders for purchase at any time.
