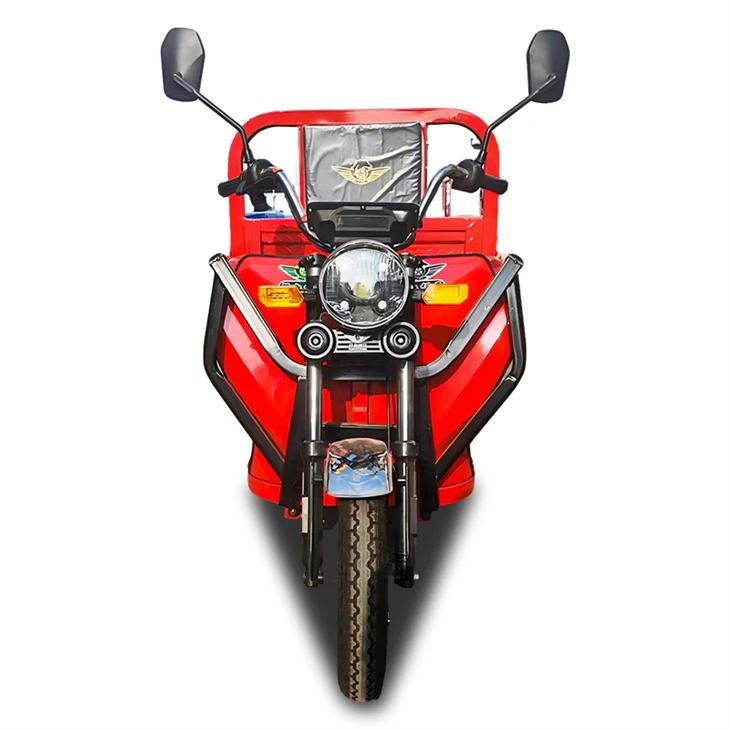

1500W Heavy Electric Cargo Tricycle

HD-03 is an electric tricycle engineered for heavy-load logistics, featuring a high‑power permanent magnet synchronous motor, a reinforced frame, hydraulic damping, and a large cargo bed—delivering robust performance and dependable hauling capacity for demanding transport tasks.

Send Inquiry

Product Introduction

The HD-03 is a rugged, electrically powered three-wheeled freight vehicle intended for business shipping, supply-chain operations, and everyday goods handling. Its permanent-magnet synchronous drive unit comes in outputs ranging from 1,000 W to 1,800 W, supplying generous motive force and reliable hill-climbing strength.

A strengthened steel chassis, a 160 integrated-shift tapered rear axle, and Model 37 hydraulic damping components combine to deliver steady operation and long service life when cargo weights are high.

Thanks to minimal upkeep expenses and a functional layout, the HD-03 works well in agricultural settings, storage facilities, distribution tasks, and numerous other hauling applications.

1500W Heavy Duty Electric Cargo Tricycle

Model Name: HD-03

Item Name	Items	Specification
Engine Data	Motor Type	120-60V 50HA Permanent Magnet Synchronous Motor (1000W/1200W/1500W/1800W)
	Magnet Specification	5.0 x 14 x 3 mm (L x W x T)
	STARTING MODE	Electric Start
	Rated Voltage	60V–72V
	MAX. POWER	2536W
	MAX. TORQUE (NM/RPM)	117.3 Nm
	Control System	18G / 24G / 30G Controller
Body: Dimensions and Weight
	FRAME KEEL	50 x 50mm
	CARGO	1.3 x 1m
	REAR AXLE	Integrated Shift 160 Taper Rear Axle; Dongba 160 / Dongba 180 / Dongba 220 / Large Six-Tooth Gear
	STEEL BOARD	5-Piece Internal Set, 50x530mm, Slotted/Grooved
	SHOCK ABSORBER	Model 37 Hydraulic Shock Absorber
	TIRE	Double Coin Nylon Front & Rear Tires, 3.50-12; Steel Wire Reinforced Tire
	BATTERY	45Ah
	OTHERS	-
Loading Quantity	loading/40HQ

Products Description

1500W Heavy Duty Electric Cargo Tricycle headlights

Halogen Headlights

Halogen lamps offer an economical lighting choice, featuring an uncomplicated build and straightforward bulb swapping. They maintain clear sightlines when rain, mist, or airborne dust obscures the road, coping well with changing weather. Their gentle illumination minimizes harsh dazzle, which helps make driving safer.

Dashboard

The HD-03 features an electronic instrument panel that displays current velocity along with the battery's charge status as you ride. A five-segment power gauge lets riders quickly see how much energy remains. In addition, its sealed construction resists both moisture and particulate matter, contributing to dependable operation and straightforward upkeep.

HANXUE HUMMER is based in Chongqing Industrial Park, China, with a 25,000-square-meter production facility. With more than 10 years of experience in tricycle development and manufacturing, we have built strong capabilities in product design, quality control, and production management. The company owns independent patented technologies and provides stable supply, flexible customization, and complete export services to meet the needs of customers worldwide.

1500W Heavy Duty Electric Cargo Tricycle
