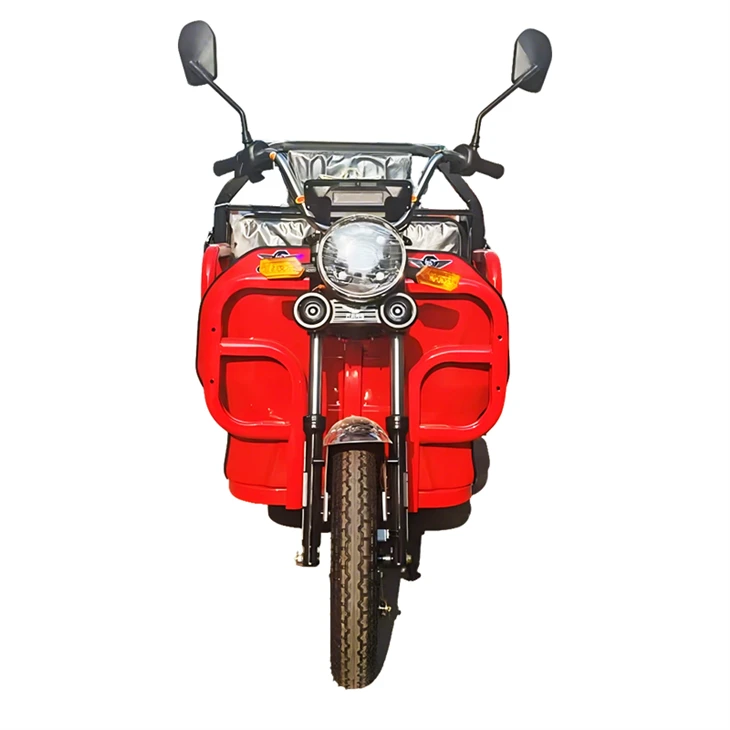

Heavy Electric Cargo Tricycle

Heavy Electric Cargo Tricycle

This practical HD-02 electric tricycle is a cost-effective and efficient cargo carrier, equipped with a permanent magnet synchronous motor for pure electric drive. It replaces fuel with clean, eco-friendly power, delivering a quieter ride and lower environmental costs.
Send Inquiry
Product Introduction





The HD-02 is a 1,200-watt battery-powered freight trike built to move goods over short hauls. A strengthened steel chassis, sized 40 by 80 millimeters, supplies the load-bearing rigidity required while hauling. Its official carrying capacity varies with the build option, spanning 800 to 1,500 kilograms.

It suits neighborhood drop-offs, farm-related hauling, and transferring supplies among close-by sites. The right load limit hinges on the chosen setup and operating environment, such as ground conditions and slope. Purchasers should verify the approved load rating for the exact variant they intend to buy before finalizing an order.



Heavy Load Electric Cargo Tricycle



product Parameter (specification)



Model Name: HD-02

Item Name

Items

Specification

Engine Data

Motor Type

120-60V 50HA Permanent Magnet Synchronous Motor (1000W/1200W/1500W/1800W)

Magnet Specification

5.0 x 14 x 3 mm (L x W x T)

STARTING MODE

Electric Start

Rated Voltage

60V–72V

MAX. POWER (KW/RPM)

2536W

MAX. TORQUE (NM/RPM)

117.3 Nm

Control System

18G / 24G / 30G Controller

Body: Dimensions and Weight​

FRAME KEEL

40 x 40 mm

CARGO

1.2m x 90cm

REAR AXLE

Integrated Shift 160 Taper Rear Axle; Dongba 160 / Dongba 180 / Dongba 220 / Large Six-Tooth Gear

STEEL BOARD

4-Piece Internal Set, 50mm x 520mm, Slotted/Grooved

SHOCK ABSORBER

Model 31 Hydraulic Shock Absorber

TIRE

Double Coin Nylon Front & Rear Tires, 3.00-12; Steel Wire Reinforced Tire

BATTERY

45Ah

OTHERS

-

Loading Quantity

loading/40HQ

Customization Yes
Shipping Method According to customer's requirement(SEAFRT/AIRFRT/RAIL/TRUCKING/MULTIMODAL)




Procurement Instructions

Is personalization available for the HD-02?

Yes. Buyers may select from various exterior paint shades, motor output levels, voltage variants, and battery pack sizes. Because build scheduling follows the chosen specs, tailor-made requests can take longer to finish.


What quantity of HD-02 battery-powered three-wheelers can a 40HQ container accommodate?

Such containers are frequently utilized for goods sent overseas. How many can be held hinges on the unit's setup and the packing and loading approach. After order particulars are confirmed, we can provide the final loading count.


Is it possible for me to examine the unit prior to shipping?

Every unit undergoes inspection before it departs the plant. In addition, we can forward pictures or clips of the finished vehicles ahead of dispatch, enabling you to review your order before it is sent.



ABOUT US


HANXUE HUMMER is located in Chongqing Industrial Park, China, with a 25,000㎡ production facility. With over 10 years of experience in tricycle research and manufacturing, we have developed independent patented technologies and established a strict quality control system. We provide stable supply, flexible customization, and complete export support services to deliver reliable electric tricycle solutions for customers worldwide.
