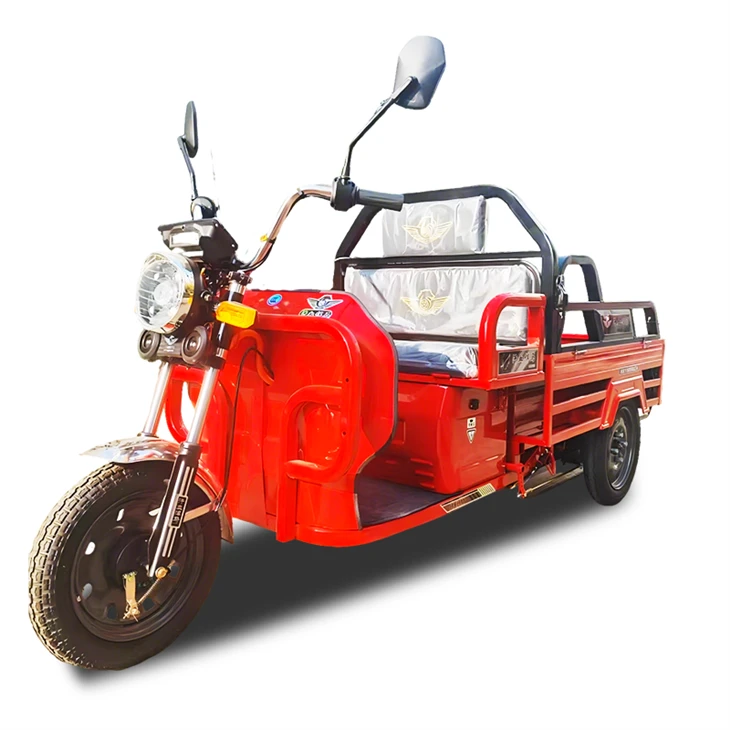

1200w Heavy Electric Cargo Tricycle
The HD-02 is a battery-fed, three-wheeled freight vehicle whose motor produces 1,200 watts. It is intended to carry goods in situations that place considerable demands on the machine. A steel framework, strengthened and formed from 40 × 80 mm sections, gives the body additional rigidity, which helps it withstand bending forces. Consequently, the tricycle is able to transport loads weighing anywhere from 800 kg to 1,500 kg. The vehicle has also been developed to cope with uneven, poorly maintained surfaces and with prolonged periods of use. These qualities allow it to provide consistent, reliable operation while hauling substantial cargo and performing ordinary transport work.
product Parameter (specification)
|
Model Name: HD-02
|
|||||||||||||||||||||||||||||||||||||||||||||
Procurement Instructions
The HD-02, a freight-carrying three-wheeler powered by electricity with a 1,200-watt motor, is not offered in only one fixed form. It can be adapted to meet individual customer preferences. The choices available cover the paint or finish used on the body, the output rating of the motor, the operating voltage, and the amount of energy the battery pack can hold. When an order is built to a customer's chosen specification rather than a standard setup, production takes more time. For that reason, the planned delivery date is shifted so it reflects the longer manufacturing period.
When goods are being sent to overseas buyers, 40-foot high-cube containers are a shipping option that is often selected. The exact number of units that can be accommodated in one container is not a fixed figure. It is influenced by the specification chosen for the vehicles and by the method used to package and load them. Different configurations or packing arrangements can therefore lead to different loading quantities.
Each vehicle is checked before it is allowed to leave the production facility. Moreover, before the goods are sent out, we can supply pictures or video footage showing the completed vehicles. This enables the customer to inspect the finished order and confirm it before dispatch occurs.
ABOUT US
HANXUE HUMMER is located in Chongqing Industrial Park, China, with a 25,000㎡ production facility. With over 10 years of experience in tricycle research and manufacturing, we have developed independent patented technologies and established a strict quality control system. We provide stable supply, flexible customization, and complete export support services to deliver reliable electric tricycle solutions for customers worldwide.
factory
Q: 1. How do the motor power ratings match the controller options? For example, is the 1800W motor paired with the 306 controller?
A: Answer: The table lists four motor ratings - 1000W, 1200W, 1500W, and 1800W - and three controllers: 186, 246, and 306. It does not explicitly state the exact pairing. Normally, the 186/246 controllers are used for lower-power motors such as 1000W–1200W, while the 246/306 controllers are used for higher-power motors such as 1500W–1800W. For the 1800W version, the 306 controller is the recommended match. Final pairing should be confirmed with the factory.
Q: 2. What does the 45Ah battery specification mean? How many battery blocks are used for 60V and 72V? Does 72V affect the battery compartment or cargo box?
A: Answer: The table only says "Battery: 45Ah." It does not state whether this is the capacity of a single 12V battery or the total pack capacity, nor does it specify lead-acid or lithium. For a 60V lead-acid pack, it is usually 5 × 12V 45Ah in series. For 72V, it is usually 6 × 12V 45Ah in series. Therefore, 72V adds one more battery block, which may require more battery-box space and increases weight. If a lithium pack is used, the dimensions may differ. Confirm with the supplier.
Q: 3. Under what test conditions are the maximum power of 2536W and maximum torque of 117.3Nm measured? What are the rated power and rated torque?
A: Answer: The table gives only maximum values: 2536W and 117.3Nm. It does not list the test voltage, current, or speed, nor does it list rated power and rated torque. Typically, maximum power occurs at higher speed, and maximum torque occurs at lower speed. The rated power is likely the selected motor rating - 1000W, 1200W, 1500W, or 1800W - but this should be confirmed by a dyno test report. Rated torque can be calculated only if the rated speed is known.
Q: 4. Which rear axle and suspension combination is required for the maximum load, especially 1500 kg?
A: Answer: The table lists several rear axles: Integrated Shift 160 Taper Rear Axle, Dongba 160, Dongba 80, Dongba 220, and Large Six-Tooth Gear. It also lists a 4-piece internal leaf spring set (50 mm × 520 mm), Model 31 hydraulic shock absorbers, and 3.00-12 steel-wire reinforced tires. For a 1500 kg payload, a heavier rear axle such as Dongba 220 or Large Six-Tooth, together with the 4-piece leaf spring and hydraulic shocks, is recommended. However, the table does not give an exact load rating for each axle, so the final combination must be confirmed by the factory.
Q: 5. How many HD-02 units can fit in a 40HQ container? Does the loading quantity change with different configurations?
A: Answer: The table's "Loading/40HQ" field is blank, so the exact quantity is not provided. The number depends on whether the trikes are shipped fully assembled, semi-knocked down (SKD), or completely knocked down (CKD), as well as on the cargo box size, rear axle type, and packing method. A larger rear axle or cargo box may reduce the quantity. The final loading quantity should be confirmed by the supplier after the order configuration and packaging method are fixed.
