250cc Fully Welded Cab Cargo Tricycle

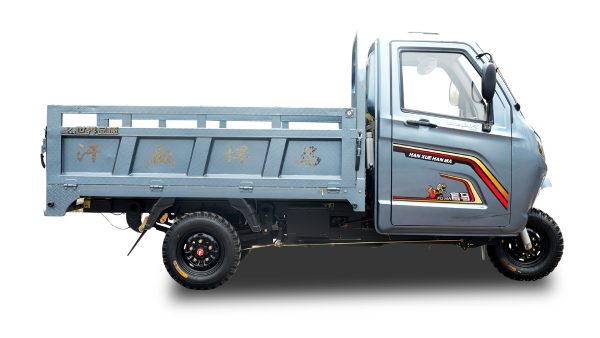

XH-008 is a 250cc fully welded cab cargo tricycle that combines the features of a compact truck cab with the maneuverability of a traditional tricycle. Its most distinctive feature is the integrated, fully welded metal cab, which differs from conventional open or semi-closed tricycles by offering superior protection against rain, wind, and sand, providing drivers with a safer working environment.
Product Parameter
|
Model Name：HX-008 |
||
|
Item Name |
ITEMS |
SPECIFICATION |
|
Engine Data |
ENGINE TYPE |
Single cylinder, 4-stroke, water-cooling |
|
DISPLACEMENT |
250 CC |
|
|
BORE*STROKE |
74×63.92 |
|
|
COMPRESSION RATIO |
9.8 ：1 |
|
|
IGNITION METHOD |
CDI |
|
|
STARTING MODE |
Electric/Kick |
|
|
TRANSMISSION |
Cycle 5 gears |
|
|
MAX.POWER(KW/RPM) |
12.5(1±5%)/6500 |
|
|
MAX.TORQUE(NM/RPM) |
21.5(1±5%)/5000 |
|
|
BODY: Dimensions and Weight |
FRAME KEEL |
40*80 |
|
CARGO |
1.8*1.25--2.0*1.3 |
|
|
REAR AXLE |
φ220, full- floating,booster king rear axle |
|
|
STEEL BOARD |
4+3 type (double layer ) |
|
|
SHOCK ABSORBER |
DS270 chopper type, with reinforced |
|
|
TIRE |
5.00-12 (FR, RR) |
|
|
BATTERY |
12V18Ah |
|
|
OTHERS |
||
|
Loading |
loading/40HQ |
|
Procurement Instructions
- We support providing customized services based on the market demands of our customers, such as changing the size of the cargo box, adjusting the color of the vehicle body, adding custom-made accessories, and designing custom brands for the vehicle.
- We can assist in providing standard export documents, including: commercial invoices, packing lists, and bills of lading. If the originality certificate requires special certification or additional documents needed for customs clearance in the customer's country, please inform us in advance during the order negotiation stage. We will assist in handling it.
- The delivery responsibility is determined upon the goods being loaded onto the designated vessel/vehicle and obtaining the bill of lading. From that point onward, the risks during transportation are borne by the buyer. In case of any transportation delays caused by force majeure, we will not bear the liability for breach of contract, but will assist the customer in following up and resolving the issue.
Production details
Equipped with 220 full-floating booster rear axle, it bears vehicle load and transmits power, with low-speed gear for strong climbing performance.
This is a fully enclosed welded cab equipped with an independent fan and comfortable seats, along with a digital dashboard that clearly displays speed and mileage. The complete set of vehicle windows and doors ensures both windproof and waterproof safety as well as practicality for daily driving, significantly enhancing comfort during heavy-duty transportation.

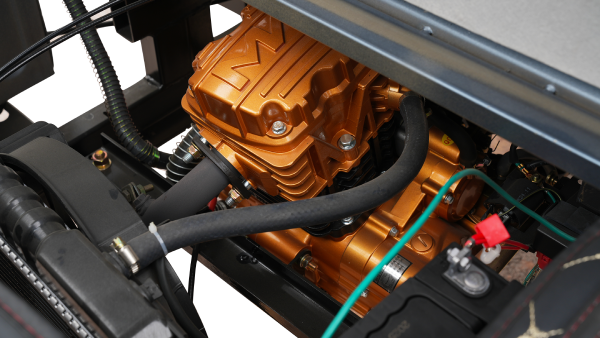

250cc fully welded cab cargo tricycle is equipped with a single-cylinder four-stroke water-cooled engine, with a maximum power of 12.5kW and a maximum torque of 21.5N·m. It is paired with a continuously variable five-speed gearbox. The water-cooling system ensures stable and efficient cooling, providing powerful and highly durable performance.
Fuel tank
About us
"HANXUE HUMMER" Company is located in the Chongqing Industrial Park of China, covering an area of 25,000 square meters. Our company's advantages lie in over ten years of experience in the research and production of tricycles, possessing independent enterprise patent technology, strict quality control, sufficient inventory, flexible customization, and one-stop export support services.
Factory
Patent Certificate
FAQ
Q: Can I mix different models in one container?
A: Yes, we support mixed loading of different models in one 40HQ container.
Q: Can you supply spare parts?
A: Yes, we can supply all original spare parts for our tricycles, including engine parts, rear axle components, suspension parts, electrical parts, and wearing parts like tires and filters.
Q: If there's a problem with the vehicle, how do I get support?
A: You can contact us directly anytime. We offer online technical guidance to fix faults quickly. Under warranty, we provide free related spare parts support.
