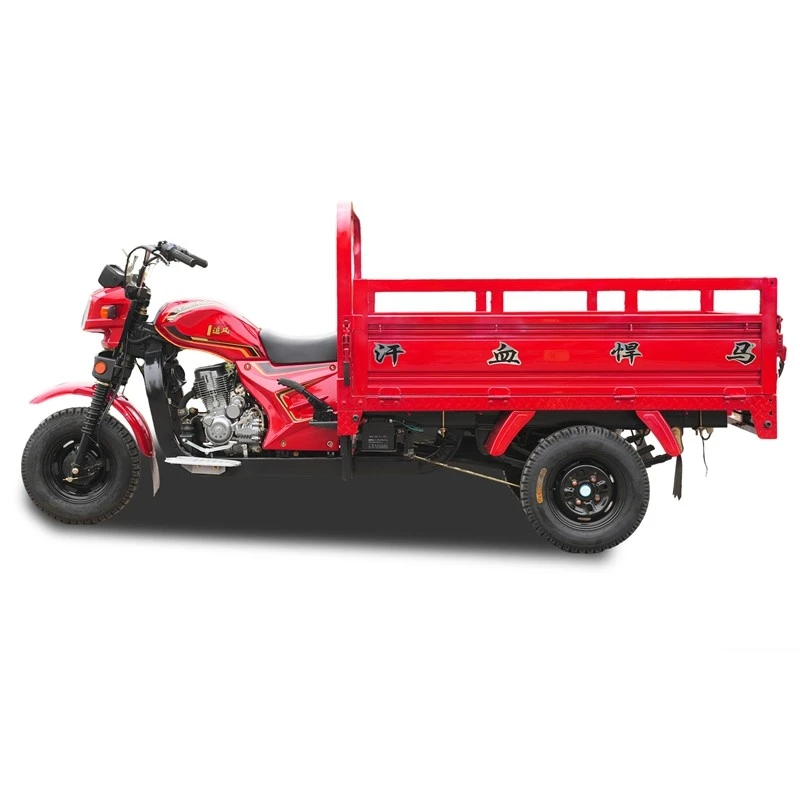

3 Wheel Cargo Motorcycle
The HM-02 is a 175cc water-cooled cargo tricycle designed for reliable daily freight transportation in hot climates and demanding road conditions. It is suitable for applications such as agricultural transportation, building material delivery, and parcel distribution in Africa, Southeast Asia, and South America.
The reinforced 40×80mm frame provides solid structural support, while the Chang'an split-booster Φ180 drum brake rear axle delivers reliable braking performance. The 7-leaf heavy-duty leaf springs and Load King shock absorbers help improve stability and reduce vibration when carrying heavy cargo. Cargo bed sizes range from 1.6×1.1m to 1.8×1.25m, with 5.00-12 tires fitted on both the front and rear. A 12V 9Ah battery provides power for starting and electrical equipment.
With a rated payload of 1,000 kg, the HM-02 is designed for frequent commercial freight operations on paved, gravel, and uneven roads. Its water-cooled engine, reinforced chassis, heavy-duty suspension, and practical cargo capacity make it a suitable option for customers seeking a durable and cost-effective cargo tricycle for daily transportation.
product Parameter (specification)
|
Model Name：HM-02 |
||
|
Item Name |
ITEMS |
SPECIFICATION |
|
Engine Data |
ENGINE TYPE |
Single cylinder,4-stroke,water-cooling |
|
DISPLACEMENT |
175 CC |
|
|
BORE*STROKE |
62×58 |
|
|
COMPRESSION RATIO |
9.2：1 |
|
|
IGNITION METHOD |
CDI |
|
|
STARTING MODE |
Electric/Kick |
|
|
TRANSMISSION |
Cycle 5 gears |
|
|
MAX.POWER(KW/RPM) |
9.2(1±5%)/7500 | |
|
MAX.TORQUE(NM/RPM) |
12.5(1±5%)/6500 | |
|
BODY: Dimensions and Weight |
FRAME KEEL |
40×80 |
|
CARGO |
1.6×1.1--1.8×1.25 | |
|
REAR AXLE |
Chang'an Split Booster φ180 Drum Brake Axle | |
|
STEEL BOARD |
Built-in 5-leaf spring (62×800 mm, grooved) | |
|
SHOCK ABSORBER |
Load King Shock Absorber | |
|
TIRE |
5.00-12 (FR, RR) | |
|
BATTERY |
12V 9Ah | |
|
OTHERS |
|
|
|
Loading |
loading/40HQ |
|
Products Description
HM-02 three-wheel cargo motorcycle comes with two cargo box sizes: 1.6×1.1m and 1.8×1.25m, perfectly suited for Africa, Southeast Asia and South America heavy-duty logistics and rural hauling.Proven by 10,000km gravel road tests, the floor structure, anti-slip texture and welding joints remain intact with almost no wear or cracking
LX175 water-Cooled Four-Stroke Reliable Low-Range Torque for Hauling. 175cc water-cooled engine delivers strong low-end torque ideal for heavy loading. keeps steady cooling without power fade even after hours of continuous climbing.
Tires
4Reinforced 4.50-12 tires deliver heavy-load durability, strong impact resistance, excellent all-road grip and water evacuation for stable, safe riding even fully loaded.
About us
(1)Located in Luohuang Industrial Park, Chongqing, China, we are a professionalmanufacturer of heavy-duty cargo tricycles with National MIIT first-class productionqualification. We integrate R&D, production, sales and one-stop export service.
(2)With 10+ years of production experience, we have independent patented technologyand strict quality control system. Our main products are heavy-duty cargo tricycleswhich are hot sold to Africa, Southeast Asia, Middle East, Central Asia, South Americaand other regions.
factory
Patent Certificate
FAQ
Hot Tags: 3 wheel cargo motorcycle, China 3 wheel cargo motorcycle manufacturers, suppliers, factory, 175cc Heavy duty Freight Tricycle, 175cc loading tricycle, 175cc Water cooled Cargo Tricycle, 3 Wheel Cargo Motorcycle, High Weight Capacity Tricycle, Hydraulic Assist Unloading Tricycle
